Clevis: Strain Plate

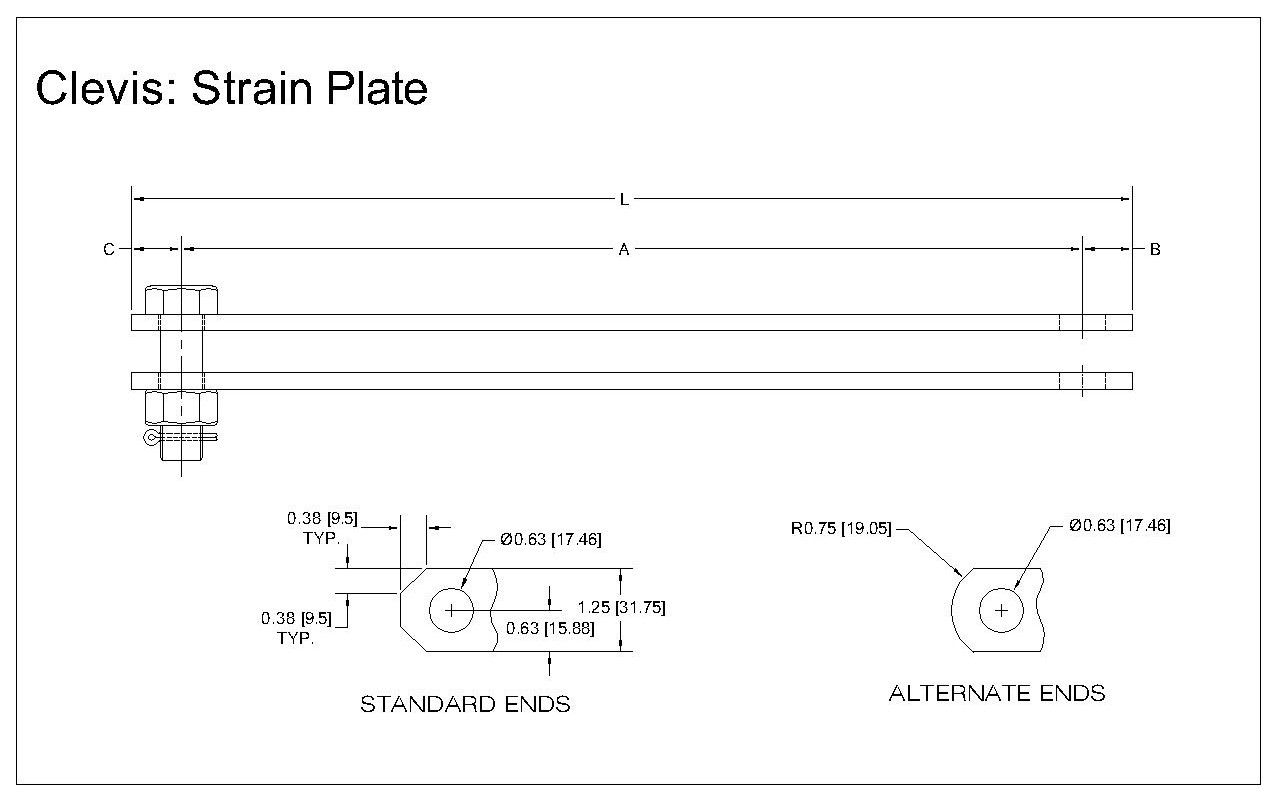

Clevis Strain plates are heavy-duty galvanized steel fitting designed to provide a secure attachment point for dead-end and insulator string assemblies. Engineered to transfer high tensile loads to utility structures, it delivers reliable performance in transmission, distribution, and substation applications.Product Details
| Cat. # | MC# | L in | A in | B in | C in | Pl. Thickness in |
|---|---|---|---|---|---|---|
| 84709 | 4.81 | 2.81 | 1.00 | 1.00 | 0.63 | |
| 81750 | 5.44 | 3.50 | 0.97 | 0.97 | 0.38 | |
| 81803 | 6.75 | 4.75 | 1.00 | 1.00 | 0.75 | |
| 84669 | 8.00 | 5.00 | 1.50 | 1.50 | 0.50 | |
| 84586 | 84586 | 8.75 | 5.25 | 1.75 | 1.75 | 0.38 |
| 81710-LPS | 81710 | 8.75 | 5.25 | 1.75 | 1.75 | 0.63 |
| 62405-LPS | 81802 | 9.00 | 7.50 | 0.75 | 0.75 | 0.25 |
| SPC75 | 80368 | 9.00 | 7.50 | 0.75 | 0.75 | 0.25 |
| SCA250 | 80356 | 11.30 | 9.80 | 0.75 | 0.75 | 0.25 |
| SPC135 | 80362 | 15.00 | 13.50 | 0.75 | 0.75 | 0.25 |
| 62406-LPS | 81652 | 15.00 | 13.50 | 0.75 | 0.75 | 0.25 |
| SPC195 | 80363 | 21.00 | 19.50 | 0.75 | 0.75 | 0.25 |
| SCA500 | 80357 | 21.20 | 19.70 | 0.75 | 0.75 | 0.25 |
| SPC275 | 80364 | 29.00 | 27.50 | 0.75 | 0.75 | 0.25 |
| SPC320 | 80367 | 33.50 | 32.00 | 0.75 | 0.75 | 0.25 |
| 62409-LPS | 83291 | 33.50 | 32.00 | 0.75 | 0.75 | 0.25 |
