PAGE 7-31-2.jpg

Socket: Ball Extended

Socket Ball Adapters are used to replace an insulator or extend a string of insulators.Items exceed CSA C83 Charpy Level 1.5

View Details

Socket: Clevis

A Socket Clevis is used to connect insulators to other hardware.Suffix "C" indicates a cotter bolt while suffix "E" includes a bolt, nut, and cotter...

View Details
PAGE 7-32-2.jpg

Socket: Clevis Extended

Designed with a standard collar for hot line work, extended socket clevis fittings are available with a variety of bolt, nut and cotter pin sizes to...

View Details
PAGE 7-33.jpg

Socket: Tongue

Used to connect the suspension clamp to the insulators, they are available in a range of tongue widths, and 2 hole diameters to fit most suspension...

View Details
PAGE 7-31-1.jpg

Socket: Tongue Extended

The hot line socket tongue is used to connect the suspension clamp to the insulators, they are available in a range of tongue widths and hole...

View Details

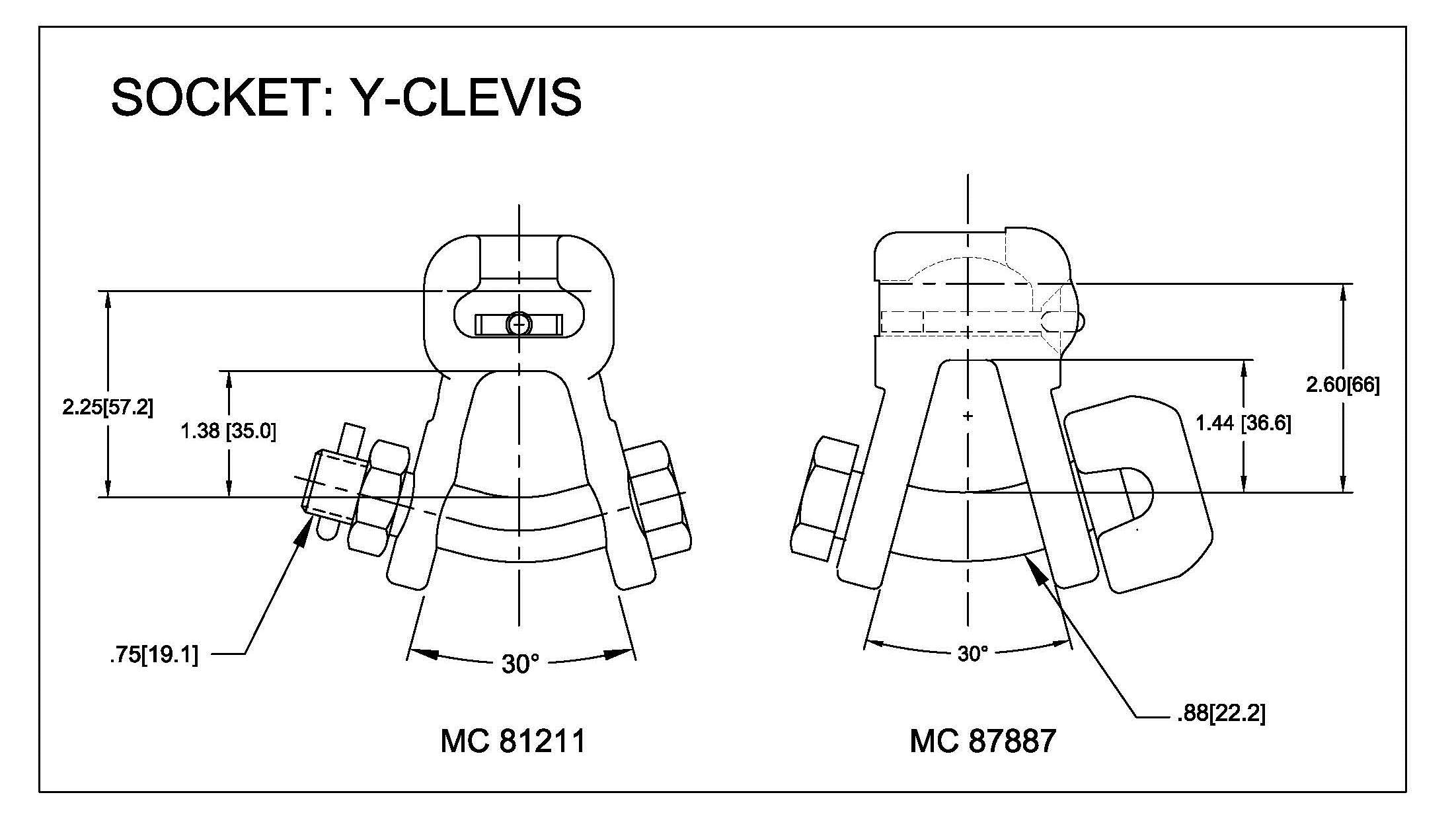

SOCKET Y-CLEVIS.jpg

Socket: Y-Clevis

Socket Y-Clevises are used to connect yoke plates or associated hardware to ball and socket insulators.Items exceed CSA C83 Charpy Level 1.5

View Details
SOCKET Y-CLEVIS EXTENDED.jpg

Socket: Y-Clevis Extended

Socket Y-Clevises are used to connect yoke plates or associated hardware to ball and socket insulators.Items exceed CSA C83 Charpy Level 1.5

View Details
