Distribution

catalogue > distribution > bracket
BRACKET FOR 72 KV TOP LINE POST.jpg

Bracket: 72 KV Top Line Post

This welded bracket is used at the top of poles in conjunction with 7/8'' (22 mm) stud mounted insulators used in armless construction.This item meets...

View Details
BRACKET POLE TOP WELDED.jpg

Bracket: Angle Pole Top Welded

The Angle Pole Top Bracket is used for armless construction with stud mounted line post insulators.It is designed to meet the CSA C83 strength...

View Details
PAGE 6 Bracket Corner Const.jpg

Bracket: Corner Construction

Bracket Nos. 60892 and 60893 are made from .625 inch (15.9mm) round steel, have drop-forged eyes and include No. 22530 tower eyes for suspension type...

View Details
BRACKET CROSS ARM MOUNTING.jpg

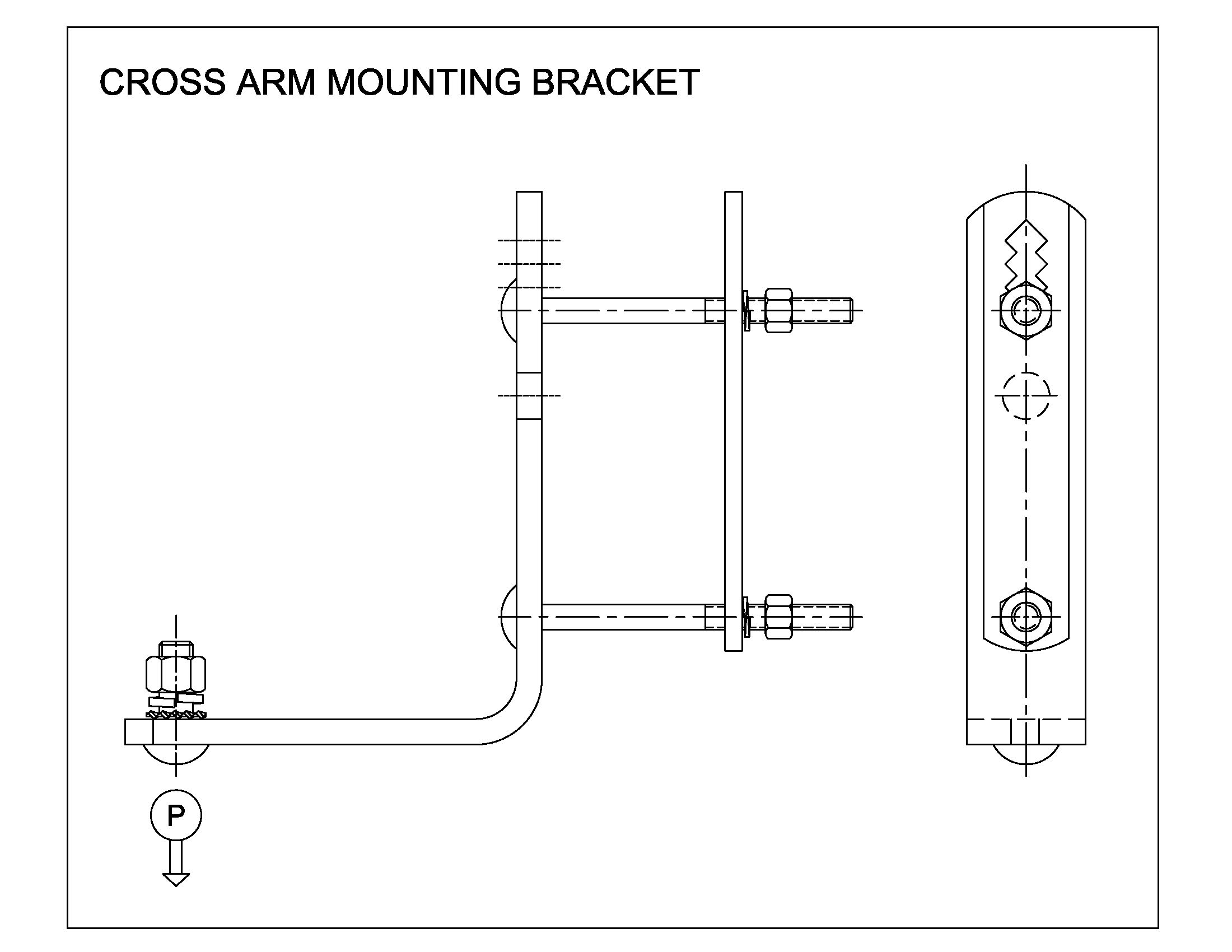

Bracket: Cross Arm Mounting

These brackets are used to fit around the crossarm and provide a location to mount cutouts or lightning arrestors.The come with 1/2'' (12.7mm)...

View Details
PAGE 5 Cutout Arrestor.jpg

Bracket: Cutout / Arrestor

For pole mounting cutouts up to 15 KV, and arrestors up to 18 KV

View Details
PAGE 4 Bracket Cutout Formed.jpg

Bracket: Cutout & Arrestor

Single Phase Cutout and Arrestor Bracket is made from 2 inch (50.8 mm) channel and is supplied with .5 inch (12.7 mm) bolts, nuts and lock washerNote:...

View Details
BRACKETS CUTOUT ARRESTOR.jpg

Bracket: Cutout & Arrestor

Cutout and Arrestor Brackets are designed to mount one, two or three phase cutout and arrestor equipment and comesupplied with 1/2'' hex. bolts, nuts...

View Details
BRACKETS CUTOUT ARRESTOR TUBE_0001.jpg

Bracket: Cutout & Arrestor - Round Tube

Cutout and Arrestor Brackets are designed to mount one, two or three phase cutout and arrestor equipment to poles. They are supplied with 1/2''...

View Details
PAGE 4 Bracket Cutout Welded.jpg

Bracket: Cutout & Arrestor Welded

These Brackets are made with 1 inch (25.4 mm) by 2 inch (50.8 mm) rectangular tube and are supplied with .5 x 2.5 inch(12.7x63.5mm) hex. bolts, nuts...

View Details
BRACKET CUTOUT ARRESTOR POLE.jpg

Bracket: Cutout Arrestor Pole Mounting

This bracket is mounted to the pole with a machine bolt and lag screw and porvide mounting for a lightning arrestor and a cutout on one bracket.

View Details
BRACKET CUTOUTLIGHTNING ARRESTOR.jpg

Bracket: Cutout/Lightning Arrestor

These brackets are used to pole mount cutouts or lighting arrestors.

View Details
BRACKET DROP LEAD SUPPORT.jpg

Bracket: Drop Lead Support

Drop Lead Support Brackets are designed to mount in existing holes of steel crossarms to provide a horizontal mount for insulators at drop locations.

View Details
PAGE 8 Bracket Insulator Angle.jpg

Bracket: Insulator, Angle Mounting

This bracket is used on crossarms for angle mounting of pin or post type insulators. It consists of a malleable iron casting supplied with 3 inch (76...

View Details
PAGE 6 Bracket Neutral Wire.jpg

Bracket: Neutral Wire (Non-Insulated Type)

Non-insulating Neutral Wire Brackets for use on rural lines are supplied in cast aluminum alloy. Both types accommodate a .5 inch (12.7 mm) diameter...

View Details
BRACKET POLE MOUNTING.jpg

Bracket: Pole Mounting

This bracket is pole mounted using a machine bolt and a lag screw, which porivdes a mounting location for various equipment.

View Details
PAGE 7 Bracket Pole Top 69V.jpg

Bracket: Pole Top (69 KV)

This ductile iron bracket is used for mounting post insulators up to 69 KV.Minimum Ultimate Strength 2700 lbs (12 KN).

View Details
PAGE 8 Bracket Pole Top Armless.jpg

Bracket: Pole Top (Armless)

This welded bracket is used at the top of poles in conjunction with stud mounted insulators used in armless construction.Minimum Ultimate Strength...

View Details
PAGE 7 Bracket Pole Top Ins.jpg

Bracket: Pole Top Insulator (35KV)

This ductile iron bracket is used for mounting post insulators up to 35 KV.Minimum Ultimate Strength 2700 lbs (12 KN).

View Details
